B7 Stud
B7 Stud

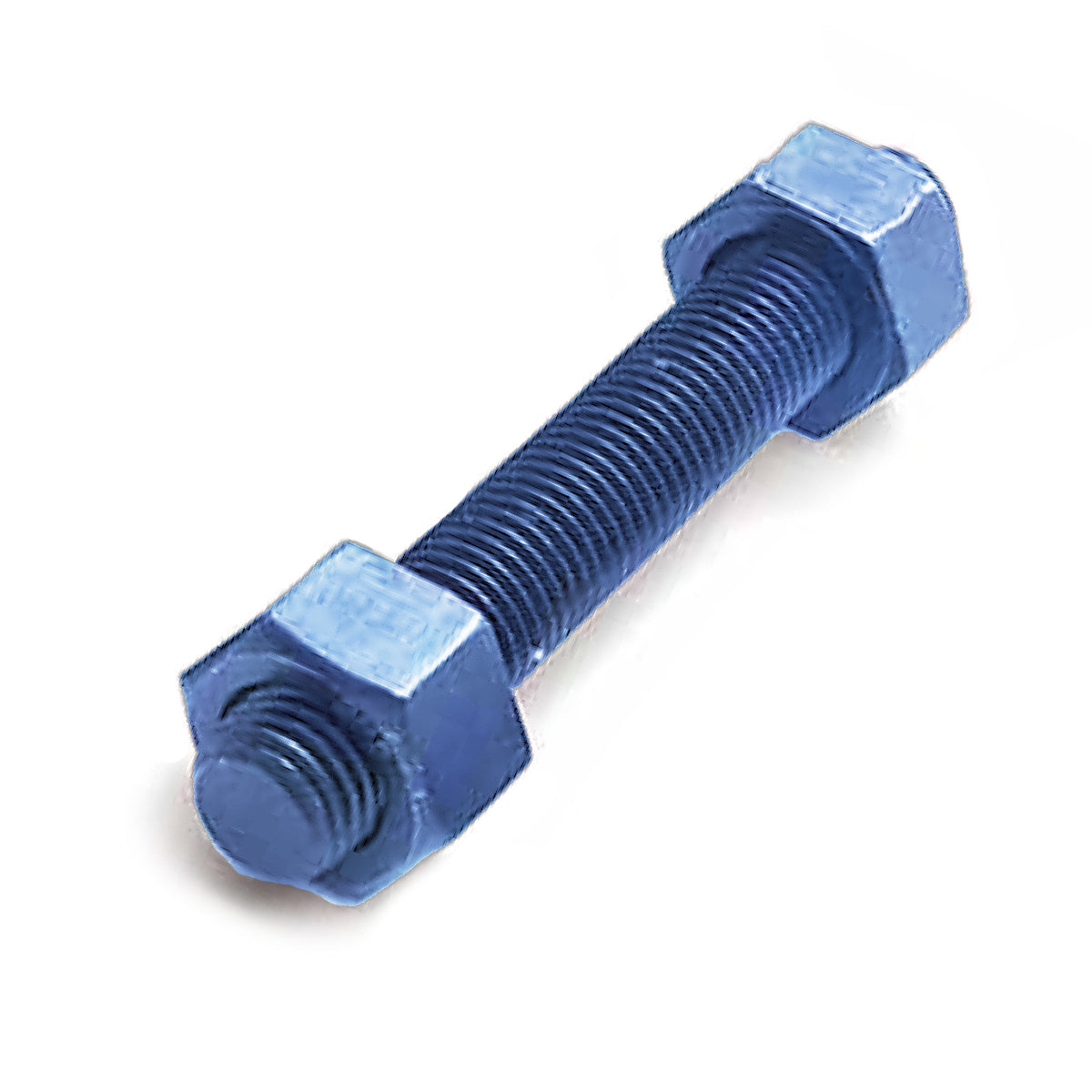

**Please note that pictures may not properly represent actual products**

B7 Studs | A193 | Teflon Coated

Diameter: 0.625 in
Length: 2 in

Product variant with selected options does not exist!
$ 3.60
SKU: TCB7SWNBK5/8X2
Weight: 0.46 lb
Share Post Pin E-mail

B7 Studs | A193 | Teflon Coated

Product Features:

  • The material for B7 Studs and Nuts conform to the requirements of ASTM A193 Grade B7 AISI 4140 4142 4105
  • High strength carbon steel maximum yield strength of 105000 PSI and minimum tensile strength of 125000 PSI
  • For 1” and smaller: threads are Unified inch coarse or fine series (UNC or UNF series) Class 2A in accordance with ANSI/ASME B1.1
  • For size larger than 1”: threads are Unified coarse or 8 thread series (UNC or 8 UN Series)
  • Screw threads are based on System 21 of ANSI/ASME B1.3
  • Coating available in Plated and Black

Materials:

ASTM A193 B7 / ASTM A194 - High tensile alloy steel for use in high temperature or high-pressure service and other special purpose applications.
